High Voltage Ceramic Capacitors AVX HK

9/10/2017 10:55:26 PM

FEATURES

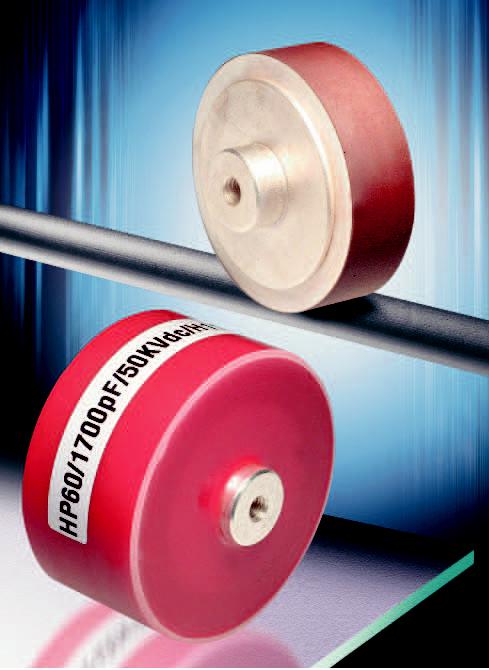

High Voltage Ceramic Capacitors HP/HW/HK Type

• Excellent behavior on pulse and fast discharge conditions

• Excellent capacitance vs voltage characteristic

• Low dissipation factor

• Very low Corona effect

• Coated and uncoated devices available

APPLICATIONS

• High-voltage supply for gas lasers

• High-voltage dividers

• Marx generators

• Power generators

• High-voltage power supply

• High-voltage coupling devices

• Power line coupling system for Internet & Telecom

TECHNOLOGY

• HP range: Coated capacitor with fixtures

• HW range: Uncoated capacitor with fixtures

• HK range: Uncoated capacitor without fixtures

• Fixtures: M5

• Marking: on each part: type – capacitance – rated voltage

• Delivery mode: bulk in carton box

• Dielectric Type II: N4700 class

Part Number	Rated Voltage kVdc	Rated Voltage kVrms	Test Voltage kVrms	Corona Inception Voltage (kVrms) (<10pc)	Capacitance ±20% (pF) ±10%on request	Dimensions millimeters (inches)
Part Number	Rated Voltage kVdc	Rated Voltage kVrms	Test Voltage kVrms	Corona Inception Voltage (kVrms) (<10pc)	Capacitance ±20% (pF) ±10%on request	Ø ± 1	E ± 2
HK30EX0561M	15kVdc	10kVrms	12kVrms	6	560PF	17 (0.670)
HK30EX0751M					750PF	18 (0.719)	6 (0.236)
HK30EX0102M					1000PF	21 (0.827)
HK40EX0152M					1500PF	26 (1.024)
HK40EX0182M					1800PF	28 (1.103)
HK40EX0202M					2000PF	29 (1.142)
HK50EX0252M					2500PF	34 (1.339)
HK50EX0272M					2700PF	35 (1.378)
HK50EX0332M					3300PF	38 (1.496)
HK60EX0372M					3700PF	41 (1.614)
HK60EX0402M					4000PF	43 (1.692)
HK60EX0502M					5000PF	47 (1.850)
HK60EX0562M					5600PF	49 (1.929)
HK30EY0501M	20kVdc	15kVrms	18kVrms	9	500PF	17 (0.670)	8 (0.314)
HK30EY0561M					560PF	18 (0.719)
HK30EY0751M					750PF	21 (0.827)
HK40EY0102M					1000PF	26 (1.024)
HK40EY0132M					1300PF	28 (1.103)
HK40EY0152M					1500PF	29 (1.142)
HK50EY0202M					2000PF	34 (1.339)
HK50EY0222M					2200PF	35 (1.378)
HK50EY0252M					2500PF	38 (1.496)
HK60EY0302M					3000PF	41 (1.614)
HK60EY0302M					3300PF	43 (1.692)
HK60EY0372M					3700PF	47 (1.850)
HK60EY0402M					4000PF	49 (1.929)
HK30E30561M	30kVdc	20kVrms	24kVrms	12	560PF	21 (0.827)	10 (0.394)
HK40E30821M					820PF	26 (1.024)
HK40E30102M					1000PF	28 (1.103)
HK40E31121M					1120PF	29 (1.142)
HK50E30152M					1500PF	34 (1.339)
HK50E30172M					1700PF	35 (1.378)
HK50E30202M					2000PF	38 (1.496)
HK60E30272M					2700PF	43 (1.692)
HK60E30302M					3000PF	47 (1.850)
HK60E30332M					3300PF	49 (1.929)
HK30E40391M	40kVdc	28kVrms	33kVrms	17	390PF	21 (0.827)	14 (0.552)
HK40E40721M					720PF	28 (1.103)
HK50E40102M					1000PF	34 (1.339)
HK50E40142M					1400PF	38 (1.496)
HK60E40172M					1700PF	41 (1.614)
HK60E40202M					2000PF	47 (1.850)
HK60E40242M					2400PF	49 (1.929)
HK30E50281M	50kVdc	35kVrms	42kVrms	21	280PF	21 (0.827)	21 (0.827)
HK40E50411M					410PF	26 (1.024)
HK40E50501M					500PF	28 (1.103)
HK40E50561M					560PF	29 (1.142)
HK50E50751M					750PF	34 (1.339)
HK50E50851M					850PF	35 (1.378)
HK50E50102M					1000PF	38 (1.496)
HK60E51351M					1350PF	43 (1.692)
HK60E50152M					1500PF	47 (1.850)
HK60E51651M					1650PF	49 (1.929)
HK30E61950M	60kVdc	42kVrms	50kVrms	25	195PF	21 (0.827)	29 (1.142)
HK40E63750M					375PF	28 (1.024)
HK50E60501M					500PF	34 (1.339)
HK50E60701M					700PF	38 (1.496)
HK60E60851M					850PF	41 (1.614)
HK60E60102M					1000PF	47 (1.850)
HK60E60122M					1200PF	49 (1.929)
HK50E90501M	100kVdc	70kVrms	80kVrms	40	500PF	38 (1.496)	43 (1.693)
HK60E96750M					675PF	43 (1.693)
HK60E90751M					750PF	47 (1.850)
HK60E98250M					825PF	49 (1.929)

We can supply replacement of AVX's high voltage ceramic capacitors.
