BSMJ Self-healing Low Voltage Shunt Capacitor

سلسلة: BSMJ
مجموعة العمل الجهد: 250Vac ~ 1200Vac
السعة المدى: 11uF ~ 1194uF
درجة حرارة العمل: -40°C~ +40°C
تحميل الحياة: --
تطبيق: Improve the power factor of the power frequency and AC power system, Flter out high frequency harmonics of the power grid and improve the quality of the power grid.

دليل تحميل المنتج (ملفx) إرسال رسالة بريد إلكتروني لنا!

مقدمة المنتج
مواصفة
كيفية الطلب

■ مقدمة المنتج

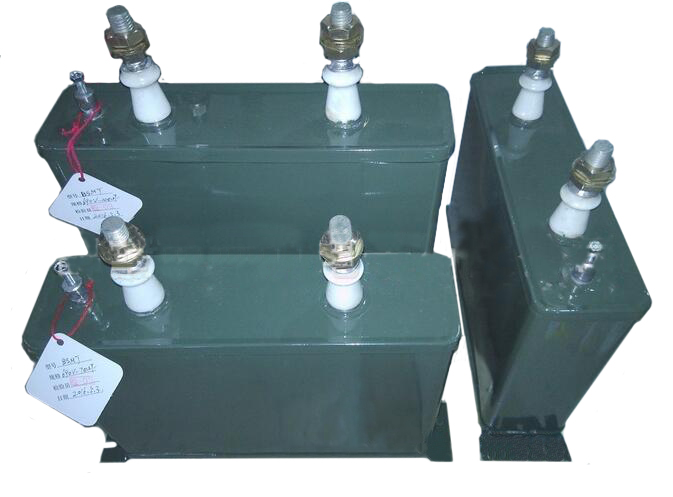

BSMJ Low voltage shunt power capacitor of the self-healing type（three-phase series）
Features:
● It has two metal shells, elliptical and rectangular, fully sealed, small size and light.
● Excellent electrical performance, low power loss, and self-healing properties.
● Special safety explosion-proof devices, safe and reliable.
Application
● Improve the power factor of the power frequency and AC power system.
● Be used to filter out high frequency harmonics of the power grid and improve the quality of the power grid.

■ Specification

● Standard: GB12747-91
● Ambient temperature: -40°C~ +40°C
● Capacitance tolerance: 0~ + 15% three-phase imbalance < 1. 08
● Disspation Factor ≤ 0.002 (100Hz)

Rating Specification below:

Rated voltage V	Rated voltage (kV)	Rated capacity (kVAR)	Rated capacity(μF)	Rated current (A)	Dimension L x W x H	Outgoing terminal	Drawing No.	P/N
250Vac	0.25	5	85µF x3 / 255µF	-	290x70x220	M8	3	BSMJ-0.25-5-3
	0.25	8	135µF x3 / 408µF	-	290x70x250	M8	3	BSMJ-0.25-8-3
	0.25	10	170µF x3 / 510µF	-	290x70x250	M8	3	BSMJ-0.25-10-3
	0.25	15	255µF x3 / 765µF	-	290x70x310	M8	3	BSMJ-0.25-15-3
	0.25	20	340µF x3 / 1020µF	-	290x70x370	M8	3	BSMJ-0.25-20-3
300Vac	0.3	5	59μF ×3 / 177µF	-	290x70x180	M8	3	BSMJ-0.3-5-3
	0.3	8.5	100μF ×3 / 300µF	-	290x70x180	M8	3	BSMJ-0.3-8.5-3
	0.3	10	118μF ×3 / 354µF	-	290x70x240	M8	3	BSMJ-0.3-10-3
400Vac	0.4	1	6.6μF x3 / 19.9μF	1.4	153x53.7x105	M6	4	BSMJ-0.4-1-3
	0.4	2	13.3μF x3 / 39.8μF	2.9	153x53.7x105	M6	4	BSMJ-0.4-2-3
	0.4	3	19.9μF x3 / 59.7μF	4.3	153x53.7x105	M6	4	BSMJ-0.4-3-3
	0.4	4	26.5μF x3 / 79.6μF	5.8	153x53.7x105	M6	4	BSMJ-0.4-4-3
	0.4	5	33.2μF x3 / 99.5μF	7.2	153x53.7x105	M6	4	BSMJ-0.4-5-3
	0.4	6	39.8μF x3 / 119.4μF	8.7	153x53.7x105	M6	4	BSMJ-0.4-6-3
	0.4	7.5	49.7μF x3 / 149.2μF	10.8	204x66x125	M6	1	BSMJ-0.4-7.5-3
	0.4	8	53.1μF x3 / 159.2μF	11.6	204x66x125	M6	1	BSMJ-0.4-8-3
	0.4	10	66.3μF x3 / 198.9μF	14.4	204x66x180	M6	1	BSMJ-0.4-10-3
	0.4	12	79.6μF x3 / 238.7μF	17.3	204x66x180	M6	1	BSMJ-0.4-12-3
	0.4	14	92.8μF x3 / 278.5μF	20.2	204x66x210	M6	1	BSMJ-0.4-14-3
	0.4	15	96.5μF x3 / 289.4μF	21.7	204x66x210	M6	1	BSMJ-0.4-15-3
	0.4	16	106.1μF x3 / 318.3μF	23.1	204x66x210	M6	1	BSMJ-0.4-16-3
	0.4	18	119.4μF x3 / 358.1μF	26	204x66x245	M6	1	BSMJ-0.4-18-3
	0.4	20	132.6μF x3 / 397.9μF	28.9	204x66x245	M6	1	BSMJ-0.4-20-3
	0.4	22	145.9μF x3 / 437.7μF	31.8	218x94x210	M8	2	BSMJ-0.4-22-3
	0.4	24	159.1μF x3 / 477.4μF	34.6	218x94x210	M8	2	BSMJ-0.4-24-3
	0.4	25	165.8μF x3 / 497.4μF	36.1	218x94x210	M8	2	BSMJ-0.4-25-3
	0.4	28	185.8μF x3 / 557.3μF	40.4	218x94x260	M8	2	BSMJ-0.4-28-3
	0.4	30	198.9μF x3 / 596.8μF	43.3	218x94x260	M8	2	BSMJ-0.4-30-3
	0.4	35	232.1μF x3 / 696.3μF	50.5	218x94x260	M8	2	BSMJ-0.4-35-3
	0.4	40	265.4μF x3 / 796.2μF	57.7	218x94x330	M8	2	BSMJ-0.4-40-3
	0.4	45	298.4μF x3 / 895.2μF	65	218x94x330	M10	2	BSMJ-0.4-45-3
	0.4	50	331.7μF x3 / 995.2μF	72.2	218x94x345	M10	2	BSMJ-0.4-50-3
	0.4	55	364.7μF x3 / 1094.2μF	79.4	325x134x220	M10	3	BSMJ-0.4-55-3
	0.4	60	398.1μF x3 / 1194.3μF	86.6	325x134x220	M10	3	BSMJ-0.4-60-3
450Vac	0.45	1	5.2μF x3 / 15.7μF	1.3	153x53.7x105	M6	4	BSMJ-0.45-1-3
	0.45	2	10.5μF x3 / 31.4μF	2.6	153x53.7x105	M6	4	BSMJ-0.45-2-3
	0.45	3	15.7μF x3 / 47.2μF	3.8	153x53.7x105	M6	4	BSMJ-0.45-3-3
	0.45	4	21μF x3 / 62.9μF	5.1	153x53.7x105	M6	4	BSMJ-0.45-4-3
	0.45	5	26.2μF x3 / 78.6μF	6.4	153x53.7x105	M6	4	BSMJ-0.45-5-3
	0.45	6	31.4μF x3 / 94.3μF	7.7	153x53.7x105	M6	4	BSMJ-0.45-6-3
	0.45	7.5	39.3μF x3 / 117.9μF	9.6	153x53.7x105	M6	4	BSMJ-0.45-7.5-3
	0.45	8	41.9μF x3 / 125.8μF	10.3	153x53.7x105	M6	4	BSMJ-0.45-8-3
	0.45	10	52.4μF x3 / 157.2μF	12.8	204x66x125	M6	1	BSMJ-0.45-10-3
	0.45	12	62.9μF x3 / 188.6μF	15.4	204x66x180	M6	1	BSMJ-0.45-12-3
	0.45	14	73.4μF x3 / 220.1μF	18	204x66x210	M6	1	BSMJ-0.45-14-3
	0.45	15	78.6μF x3 / 235.8μF	19.2	204x66x210	M6	1	BSMJ-0.45-15-3
	0.45	16	83.8μF x3 / 251.5μF	20.5	204x66x210	M6	1	BSMJ-0.45-16-3
	0.45	18	94.3μF x3 / 282.9μF	23.1	204x66x210	M6	1	BSMJ-0.45-18-3
	0.45	20	104.8μF x3 / 314.4μF	25.7	204x66x210	M6	1	BSMJ-0.45-20-3
	0.45	22	115.3μF x3 / 345.8μF	28.3	218x94x245	M8	2	BSMJ-0.45-22-3
	0.45	24	125.8μF x3 / 377.3μF	30.8	218x94x245	M8	2	BSMJ-0.45-24-3
	0.45	25	131μF x3 / 393.1μF	32.1	218x94x210	M8	2	BSMJ-0.45-25-3
	0.45	28	146.8μF x3 / 440.3μF	35.9	218x94x210	M8	2	BSMJ-0.45-28-3
	0.45	30	157.3μF x3 / 471.8μF	38.5	218x94x210	M8	2	BSMJ-0.45-30-3
	0.45	35	183.4μF x3 / 550.2μF	44.9	218x94x260	M8	2	BSMJ-0.45-35-3
	0.45	40	209.7μF x3 / 629.1μF	51.3	218x94x260	M8	2	BSMJ-0.45-40-3
	0.45	45	235.7μF x3 / 707.1μF	57.7	218x94x330	M10	2	BSMJ-0.45-45-3
	0.45	50	262.1μF x3 / 786.3μF	64.2	218x94x330	M8	2	BSMJ-0.45-50-3
	0.45	55	288.2μF x3 / 864.5μF	70.6	218x94x330	M10	2	BSMJ-0.45-55-3
	0.45	60	314.5μF x3 / 943.6μF	77.5	218x94x345	M10	2	BSMJ-0.45-60-3
500Vac	0.5	5	21.2 μF ×3 / 63.7	-	290x70x180	M6	3	BSMJ-0.5-5-3
	0.5	8	34 μF ×3 / 102	-	290x70x180	M6	3	BSMJ-0.5-8-3
	0.5	10	42.5 μF ×3 / 127.4	-	290x70x200	M6	3	BSMJ-0.5-10-3
	0.5	12	51 μF ×3 / 153	-	290x70x200	M6	3	BSMJ-0.5-12-3
	0.5	15	63.7 μF ×3 / 191	-	290x70x240	M6	3	BSMJ-0.5-15-3
	0.5	16	67.9 μF ×3 / 203.8	-	290x70x240	M6	3	BSMJ-0.5-16-3
	0.5	18	76.4 μF ×3 / 229.3	-	290x70x240	M6	3	BSMJ-0.5-18-3
525Vac	0.525	5	19.2μF x3 / 57.7μF	5.5	204x66x125	M6	1	BSMJ-0.525-5-3
	0.525	10	38.5μF x3 / 115.5μF	11	204x66x180	M6	1	BSMJ-0.525-10-3
	0.525	15	57.7μF x3 / 173.2μF	16.5	204x66x210	M6	1	BSMJ-0.525-15-3
	0.525	16	61.6μF x3 / 184.8μF	17.6	204x66x210	M6	1	BSMJ-0.525-16-3
	0.525	18	69.3μF x3 / 207.9μF	19.8	218x94x210	M6	2	BSMJ-0.525-18-3
	0.525	20	77μF x3 / 231μF	22	218x94x210	M6	2	BSMJ-0.525-20-3
	0.525	25	96.3μF x3 / 288.9μF	27.5	218x94x210	M8	2	BSMJ-0.525-25-3
	0.525	30	115.5μF x3 / 346.6μF	33	218x94x260	M8	2	BSMJ-0.525-30-3
	0.525	40	154.1μF x3 / 462.2μF	44	218x94x330	M8	2	BSMJ-0.525-40-3
	0.525	50	192.6μF x3 / 577.7μF	55	218x94x345	M10	2	BSMJ-0.525-50-3
	0.525	60	231.1μF x3 / 693.3μF	66	325x134x220	M10	3	BSMJ-0.525-60-3
600Vac	0.6	5	12.2µF x3 / 36.6µF	-	290x70x220	M6	3	BSMJ-0.6-5-3
	0.6	10	24.4µF x3 / 73µF	-	290x70x220	M6	3	BSMJ-0.6-10-3
	0.6	15	36.5µF x3 / 109.7µF	-	290x70x240	M6	3	BSMJ-0.6-15-3
	0.6	20	48.7µF x3 / 146.2µF	-	290x70x290	M6	3	BSMJ-0.6-20-3
	0.6	25	60.9µF x3 / 182.8µF	-	290x70x310	M6	3	BSMJ-0.6-25-3
	0.6	30	73.1µF x3 / 219.3µF	-	290x70x330	M6	3	BSMJ-0.6-30-3
	0.6	35	85.3µF x3 / 255.9µF	-	290x70x370	M6	3	BSMJ-0.6-35-3
	0.6	40	97.5µF x3 / 292.4µF		290x70x370	M6	3	BSMJ-0.6-40-3
690Vac	0.69	5	11.1μF x3 / 33.4μF	4.2	204x66x125	M6	1	BSMJ-0.69-5-3
	0.69	10	22.3μF x3 / 66.9μF	8.4	204x66x180	M6	1	BSMJ-0.69-10-3
	0.69	15	33.4μF x3 / 100.3μF	12.6	204x66x210	M6	1	BSMJ-0.69-15-3
	0.69	16	35.7μF x3 / 107μF	13.4	204x66x210	M6	1	BSMJ-0.69-16-3
	0.69	20	44.6μF x3 / 133.8μF	16.7	218x94x210	M6	2	BSMJ-0.69-20-3
	0.69	25	55.7μF x3 / 167.2μF	20.9	218x94x210	M6	2	BSMJ-0.69-25-3
	0.69	30	66.9μF x3 / 200.7μF	25.1	218x94x260	M8	2	BSMJ-0.69-30-3
	0.69	40	89.1μF x3 / 267.4μF	33.5	218x94x330	M8	2	BSMJ-0.69-40-3
	0.69	50	111.4μF x3 / 334.3μF	41.9	325x134x345	M10	3	BSMJ-0.69-50-3
	0.69	60	133.8μF x3 / 401.4μF	50.2	325x134x220	M10	3	BSMJ-0.69-60-3
1200Vac	1.2	5	3.7μF x3 / 11μF	2.4	204x66x18	M6	1	BSMJ-1.2-5-3
	1.2	10	7.3μF x3 / 22μF	4.8	204x66x21	M6	1	BSMJ-1.2-10-3
	1.2	15	11.1μF x3 / 33.2μF	7.2	204x66x22	M6	1	BSMJ-1.2-15-3
	1.2	20	14.7μF x3 / 44.2μF	9.6	218x94x26	M6	2	BSMJ-1.2-20-3
	1.2	25	18.4μF x3 / 55.3μF	12	218x94x26	M6	2	BSMJ-1.2-25-3

More details please contact us.
Datasheet(PDF) of BSMJ Self-healing Low Voltage Shunt Capacitor, Please Click this to email us.
