CH81 High Voltage Paper Dielectric Capacitor

سلسلة: CH81
مجموعة العمل الجهد: 2kV~30kVdc
السعة المدى: 0.001uF ~ 1uF
درجة حرارة العمل:
تحميل الحياة: --
تطبيق: DC Filter and pulsing circuits

دليل تحميل المنتج (ملفx) إرسال رسالة بريد إلكتروني لنا!

مقدمة المنتج
مواصفة
كيفية الطلب

■ مقدمة المنتج

CH81 High Voltage Paper Dielectric Capacitor
Features:
● Metal foil as electrode, the impregnated paper and the polyester film
● small size, easy to install
Application:
● Applied in DC and pulsing circuits

■ Specification

● Standard: SJ659-81
● Operate Temperature: -55°C-+85°C
● Capacitance tolerance: ± 5% ；± 10%
● Dissipation factor: ≤ 0.01
● Insulation resistance:
    U_R ≤ 0.22µF ≥ 10000M Ω
    U_R > 0.22µF ≥ 2000MΩ*uF
● Withstand voltage:
    U_R ≤ 15KV 1.2U_R
    U_R ＞ 15KV 1.1U_R

Rating Specification below:

Rated Voltage Capacitance	Dimension D x D1 x L	Terminal	P/N
2kV 0.033uF	22x22x43	M4*12	MXCH81333K202M4
2kV 0.047uF	22x22x43	M4*12	MXCH81473K202M4
2kV 0.22uF	36x39x50	M4*12	MXCH81224K202M4
2kV 0.33uF	36x39x50	M4*12	MXCH81334K202M4
2kV 0.47uF	36x39x68	M4*12	MXCH81474K202M4
2kV 1uF	40x44x103	M4*12	MXCH81105K202M4
3kV 0.022uF	22x22x43	M4*12	MXCH81223K302M4
3kV 0.033uF	22x22x53	M4*12	MXCH81333K302M4
3kV 0.047uF	22x22x53	M4*12	MXCH81473K302M4
3kV 0.1uF	36x39x50	M4*12	MXCH81104K302M4
3kV 0.22uF	36x39x68	M4*12	MXCH81224K302M4
3kV 0.33uF	36x39x78	M4*12	MXCH81334K302M4
3kV 0.47uF	40x44x78	M4*12	MXCH81474K302M4
4kV 0.01uF	22x22x43	M4*12	MXCH81103K402M4
4kV 0.022uF	22x22x53	M4*12	MXCH81223K402M4
4kV 0.033uF	25x28x50	M4*12	MXCH81333K402M4
4kV 0.047uF	25x28x50	M4*12	MXCH81473K402M4
4kV 0.1uF	36x39x68	M4*12	MXCH81104K402M4
4kV 0.22uF	40x44x78	M4*12	MXCH81224K402M4
4kV 0.33uF	40x44x78	M4*12	MXCH81334K402M4
4kV 0.47uF	48x52x103	M6*20	MXCH81474K402M6
6.3kV 0.022uF	36x39x50	M4*12	MXCH81223K632M4
6.3kV 0.047uF	36x39x50	M4*12	MXCH81473K632M4
6.3kV 0.1uF	36x39x103	M4*12	MXCH81104K632M4
6.3kV 0.22uF	48x52x103	M6*20	MXCH81224K632M6
8kV 0.0022uF	22x22x43	M4*12	MXCH81222K802M4
8kV 0.0033uF	22x22x43	M4*12	MXCH81332K802M4
8kV 0.0047uF	22x22x43	M4*12	MXCH81472K802M4
8kV 0.01uF	25x28x50	M4*12	MXCH81103K802M4
8kV 0.022uF	36x39x50	M4*12	MXCH81223K802M4
8kV 0.033uF	36x39x68	M4*12	MXCH81333K802M4
8kV 0.22uF	55x59x153	M6*20	MXCH81224K802M6
10kV 0.001uF	22x22x53	M4*12	MXCH81102K103M4
10kV 0.0022uF	22x22x53	M4*12	MXCH81222K103M4
10kV 0.0033uF	22x22x68	M4*12	MXCH81332K103M4
10kV 0.0047uF	25x28x50	M4*12	MXCH81472K103M4
10kV 0.01uF	36x39x50	M4*12	MXCH81103K103M4
10kV 0.022uF	36x39x68	M4*12	MXCH81223K103M4
10kV 0.033uF	40x44x78	M4*12	MXCH81333K103M4
10kV 0.047uF	40x44x78	M4*12	MXCH81473K103M4
10kV 0.1uF	48x52x103	M6*20	MXCH81104K103M6
15kV 0.001uF	22x22x68	M4*12	MXCH81102K153M4
15kV 0.0022uF	25x28x50	M4*12	MXCH81222K153M4
15kV 0.0033uF	36x39x50	M4*12	MXCH81332K153M4
15kV 0.0047uF	36x39x68	M4*12	MXCH81472K153M4
15kV 0.01uF	40x44x78	M4*12	MXCH81103K153M4
15kV 0.022uF	36x39x103	M4*12	MXCH81223K153M4
15kV 0.033uF	48x52x103	M6*20	MXCH81333K153M6
20kV 0.001uF	36x39x68	M4*12	MXCH81102K203M4
20kV 0.0022uF	36x39x68	M4*12	MXCH81222K203M4
20kV 0.0033uF	36x39x68	M4*12	MXCH81332K203M4
20kV 0.0047uF	40x44x78	M4*12	MXCH81472K203M4
20kV 0.01uF	36x39x103	M4*12	MXCH81103K203M4
20kV 0.022uF	48x52x103	M6*20	MXCH81223K203M6
20kV 0.033uF	55x59x103	M6*20	MXCH81333K203M6
20kV 0.047uF	55x59x153	M6*20	MXCH81473K203M6
30kV 0.001uF	36x39x103	M4*12	MXCH81102K303M4
30kV 0.0022uF	36x39x103	M4*12	MXCH81222K303M4
30kV 0.0033uF	40x44x103	M4*12	MXCH81332K303M4
30kV 0.0047uF	40x44x103	M4*12	MXCH81472K303M4
30kV 0.01uF	48x52x103	M6*20	MXCH81103K303M6
30kV 0.022uF	55x59x153	M6*20	MXCH81223K303M6

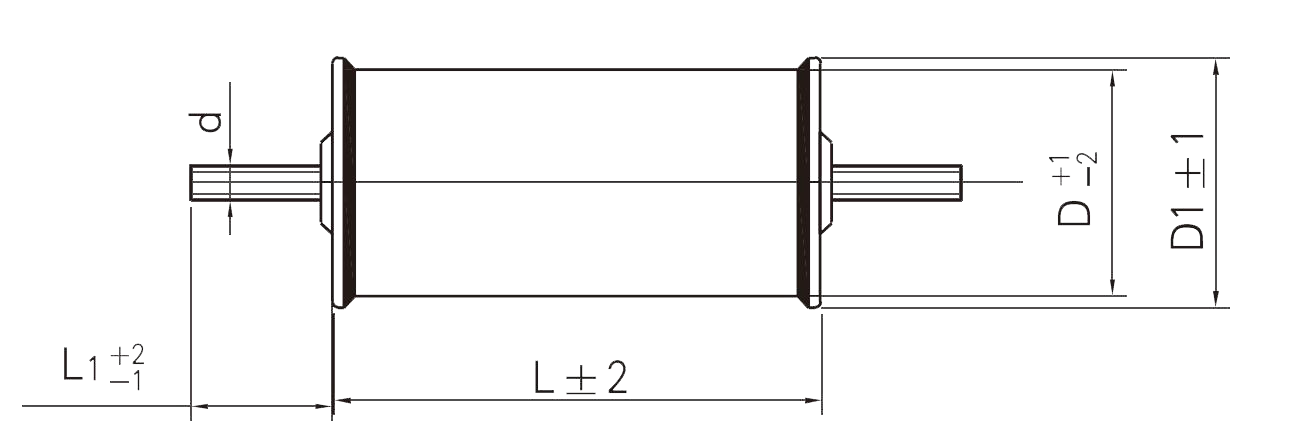

Draw:
