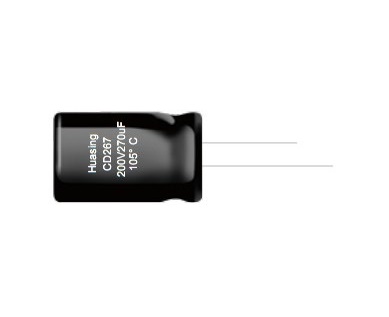

CD267 Radial Lead Aluminum Electrolytic Capacitor

سلسلة: CD267 PM
مجموعة العمل الجهد: 6.3V~450Vdc
السعة المدى: 56uF~33000uF
درجة حرارة العمل: -40~+105°C
تحميل الحياة: 2000hours @ 105°C
تطبيق: With high ripple current capability For switching adapter

دليل تحميل المنتج (ملفx) إرسال رسالة بريد إلكتروني لنا!

مقدمة المنتج
مواصفة
كيفية الطلب

■ مقدمة المنتج

CD267 PM Radial Leads Aluminum Electrolytic Capacitors

Feature:
● Body diameter of φ16mm to φ25mm

● Life 2000h at 105°C
Application:
● With high ripple current capability For switching adapter
● Expanded rated voltage range

■ Specification

Specification	Size (mm)	Part Number	Specification	Size (mm)	Part Number
6.3V 10000UF	16X25	ECR0JPM103M**160025	63V 2200UF	18x35.5	ECR1JPM222M**180035
6.3V 15000UF	16X35.5	ECR0JPM153M**160035	63V 3300UF	20x41	ECR1JPM332M**200041
6.3V 22000UF	18x40	ECR0JPM223M**180040	63V 4700UF	22x51	ECR1JPM472M**220051
6.3V 33000UF	22x51	ECR0JPM333M**220051	63V 6800UF	25x51	ECR1JPM682M**250051
10V 6800UF	16x25	ECR1APM682M**160025	100V 470UF	16x25	ECR2APM471M**160025
10V 10000UF	16x35.5	ECR1APM103M**160035	100V 1000UF	20x41	ECR2APM102M**200041
10V 15000UF	18x35.5	ECR1APM153M**180035	100V 2200UF	22x51	ECR2APM222M**220051
10V 22000UF	20X41	ECR1APM223M**200041	100V 3300UF	25x51	ECR2APM332M**250051
10V 33000UF	22x51	ECR1APM333M**220051	160V 220UF	16x35.5	ECR2CPM221M**160035
16V 4700UF	16x25	ECR1CPM472M**160025	160V 330UF	18x40	ECR2CPM331M**180040
16V 6800UF	16X35.5	ECR1CPM682M**160035	160V 470UF	22x41	ECR2CPM471M**220041
16V 10000UF	18x35.5	ECR1CPM103M**180035	160V 1000UF	25x51	ECR2CPM102M**250051
16V 15000UF	20x41	ECR1CPM153M**203041	200V 270UF	18x31.5	ECR2DPM271M**180031
16V 22000UF	22X51	ECR1CPM223M**220051	200V 330UF	18x36	ECR2DPM331M**180036
16V 33000UF	25x51	ECR1CPM333M**250051	200V 330UF	18x31.5	ECR2DPM331M**180031
25V 3300UF	16x25	ECR1EPM332M**160025	200V 390UF	18x36	ECR2DPM391M**180036
25V 4700UF	16X31.5	ECR1EPM472M**160031	200V 390UF	18x40	ECR2DPM391M**180040
25V 6800UF	18x35.5	ECR1EPM682M**180035	200V 470UF	20x41	ECR2DPM471M**200041
25V 10000UF	20x41	ECR1EPM103M**200041	200V 560UF	20x45	ECR2DPM561M**200045
25V 15000UF	22x51	ECR1EPM153M**220051	400V 100UF	16X35.5	ECR2GPM101M**160035
25V 22000UF	25X51	ECR1EPM223M**250051	400V 100UF	18x31.5	ECR2GPM101M**180031
35V 2200UF	16x25	ECR1VPM222M**160025	400V 120UF	18x36	ECR2GPM121M**180036
35V 3300UF	16x35.5	ECR1VPM332M**160035	400V 150UF	18x40	ECR2GPM151M**180040
35V 4700UF	18X35.5	ECR1VPM472M**180035	400V 180UF	20x41	ECR2GPM181M**200041
35V 6800UF	20x41	ECR1VPM682M**200041	400V 220UF	22X41	ECR2GPM221M**220041
35V 10000UF	22x51	ECR1VPM103M**220051	450V 56UF	16X31.5	ECR2WPM560M**160031
35V 15000UF	25X51	ECR1VPM153M**250051	450V 68UF	16x35.5	ECR2WPM680M**160035
50V 2200UF	16x35.5	ECR1HPM222M**160035	450V 82UF	16x40	ECR2WPM820M**160040
50V 3300UF	18x35.5	ECR1HPM332M**180335	450V 82UF	18x31.5	ECR2WPM820M**180031
50V 4700UF	20x41	ECR1HPM472M**200041	450V 100UF	18x36	ECR2WPM101M**180036
50V 6800UF	22x51	ECR1HPM682M**220051	450V 120UF	18x40	ECR2WPM121M**180040
50V 10000UF	25x51	ECR1HPM103M**250051	450V 150UF	20x41	ECR2WPM151M**200041
63V 1000UF	16x25	ECR1JPM102M**160025	-	-	-

Datasheet(PDF) of CD267 PM Aluminum Electrolytic Capacitors, Please Contact us.

■ How To Order

Send us the Part Number, for example, ECR1JPM102M**160025.
